| ความสว่าง | 3100 Lumens |
|---|---|
| ความละเอียด | WXGA (1280x800) |
| Contrast Ratio | 3,000:1 |
| สัดส่วนภาพ | 16:10 |
| น้ำหนัก | 5.6 kg |
| คุณสมบัติพิเศษ | INTERACTIVE PROJECTOR |

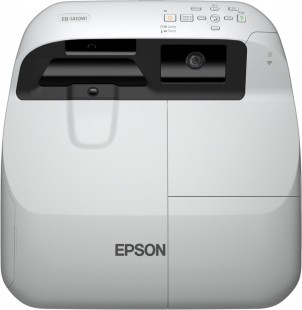

| MODEL NUMBER | EB-1400Wi / EB-1410Wi |
|---|---|
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Specifications of Main Parts | |
| LCD: | |
Size |
0.59" with MLA (D8) |
Native Resolution |
WXGA |
| Projection Lens: | |
Type |
No Optical Zoom / Focus (Manual) |
F-Number |
1.80 |
Focal Length |
3.71mm |
Zoom Ratio |
1 - 1.35 (Digital Zoom) |
Throw Ratio |
0.27 - 0.37 (Wide - Tele) |
| Lamp | |
Type |
EB-1400Wi: 190W UHE EB-1410Wi: 215W UHE |
Life*¹ (Normal/Eco) |
3,500 hours / 5,000 hours |
| Screen Size (Projected Distance) | |
| Standard Size | 74.3" screen 0.438m , 60" to 100" [0.348 to 0.597m] |
| Brightness*² | |
| White Light Output (Normal/Eco) |
EB-1400Wi: 2,600lm / 1,800lm EB-1410Wi: 3,100lm / 1,800lm |
| Colour Light Output |
EB-1400Wi: 2,600lm EB-1410Wi: 3,100lm |
| Contrast Ratio | 3,000 : 1 |
| Internal Speaker(s) | |
| Sound Output | 10W (Monoaural) |
| Keystone Correction | |
| Vertical / Horizontal | ± 3° / ± 3° |
| Connectivity | |
| Analog Input | |
D-Sub 15 pin |
1 (Blue) |
Component |
D-sub 15pin (Blue-molding) x 1 (in common with Analog RGB connector) |
Composite |
RCA x 1 (Yellow) |
| Digital Input | |
HDMI |
1 (HDCP supported) |
Display Port |
1 |
| Output Terminal | |
D-Sub 15pin |
1 (Black) |
| Audio Input | |
Stereo Mini Jack |
3 |
| Audio Output | |
Stereo Mini Jack |
1 |
| Others | |
USB Type A |
2 (USB Memory / ELPDC06 Document Camera) |
USB Type B |
1 (USB Display, mouse, K/B, Interactive) |
| Control I/O | |
RS-232C |
D-sub 9pin x 1 |
Remote Control Input |
1 (Control Pad Power Source) |
| Network | |
Wired LAN |
RJ45 x 1 (10/100Mbps) |
Wireless |
Yes (ELPAP07) |
| Operating Temperature | 5°C to 35°C <41°F to 95°F> (20% - 80% humidity, unfrozen) |
| Operating Altitude | 0m to 2,286m <0ft to 7,500ft> (over 1,500m / 4,921ft: with high altitude mode) |
| Direct Power On / Off | Yes / No |
| Start-Up Period | About 8 seconds, Warm-up period: 30 seconds |
| Cool Down Period | Instant off |
| Air Filter | |
Type |
High Efficiency Filter |
Maintenance Cycle |
5,000H*3 |
| Power Supply Voltage | 100V - 240V AC ±10%, 50Hz / 60Hz |
| Power Consumption (220 - 240V) | |
Lamp On (Normal / Eco) |
EB-1400Wi: 281W / 222W EB-1410Wi: 307W / 222W |
Stand By (Network On / Off) |
5.0W / 0.27W |
| Dimension Excluding Feet (W x H x D) | 367mm x 155mm x 375mm |
| Weight | 5.6 kg (without SlidePlate), 6.3 kg (with SlidePlate) |
| Fan Noise (Normal / Eco) | 35dB / 28dB |
| Interactive Specification | |
| Basic Specification | |
Technology |
Infrared |
Input Devices |
Digital Pen (Easy Interactive Pen 1 and 2) |
Connection to PC |
USB, Network |
Calibration |
Auto / Manual (25points) |
Functions |
Hover, Right click, Auto Adjust Pen Area |
| Computer Interactive | |
Driver Installation |
Windows, Linux*4: No Installation required, Mac OS X: Installation required. |
Multi-Pen Support |
Yes (with Easy Interactive Tools Ver.2.10). Up to 2 types of pens. (Easy Interactive Pen 1 and 2) |
| Instant Annotation (PC-Less) | |
Multi-Pen Support |
Yes. Up to 2 types of pens. (Easy Interactive Pen 1 and 2) |
| Whiteboard Mode | |
Multi-Pen Support |
Yes. Up to 2 types of pens. (Easy Interactive Pen 1 and 2) |
Whiteboard Function |
Yes |
Functions |
Multi-Page support, Power-Off recovery, template, Capture function, Export Meeting, Printer & Scanner support |
| External Control Pad Specification | |
| Dimension | |
Exclude Protrusion |
136mm x 149mm x 29mm |
| Weight | 240g (Excluding Batteries and Rubber feet) |
| Battery Life |
Condition: 250 days/year, 100 times/day, 0.5 s/time Alkaline dry cell: 2.8years Manganese dry cell: 0.6year |
| Interfaces | |
USB Type-A (User Input) |
2 (USB memory / Printer) |
USB Type-B (User Input) |
1 (PC-Interactive/ USB Display) |
Stereo Mini Jack |
1 (for Power Source) |
