| ความสว่าง |
4000 Lumens |
| ความละเอียด |
XGA (1024x768) |
| Contrast Ratio |
2,000:1 |
| สัดส่วนภาพ |
4:3 |
| น้ำหนัก |
2.98 kg |
|
Type |
|
|
Product type |

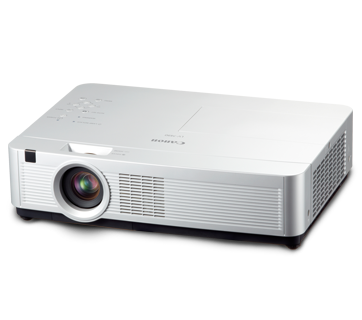

Projector |
|
Imaging device, number |
Transmissive LCD panel x 3 panels |
|
LCD Panel |
|
|
Number of pixels |
1024 x 768 |
|
Size, aspect ratio |
0.55 type, 4:3 |
|
Driven system |
TFT active matrix |
|
Projection Lens |
|
|
Lens configuration |
F2.00 - 2.15, 18.38 - 22.06mm |
|
F number, focal length |
1.2x |
|
Zoom magnification |
Non-powered |
|
Lens shift ratio (fixed) |
6:1 |
|
Light Source |
|
|
Lamp type |
215-UHP |
|
Lamp power*1 |
200 / 174 / 140W |
|
Images |
|
|
Optical system |
Dichroic mirror and X-prism system |
|
Brightness (high) |
4000lm |
|
Marginal lumination ratio |
85% |
|
Contrast ratio*2 |
2000:1 |
|
Projection distance |
1.3 - 11.8m |
|
Projection distance for 100" |
3.3 - 3.9m |
|
Image Size |
40 ~ 300 type, 4:3 |
|
Digital zoom (by length) |
0.5x - 4x |
|
Keystone correction range |
V ±30° (Auto function works for ±20°) |
|
Images Signals |
|
|
Analog RGB |
WUXGA / UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC |
|
Component video |
1080i / 1035i / 720p / 576i / 480i |
|
Composite video / S-video |
NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N |
|
Terminals |
|
|
Mini D-sub 15pin |
Analog RGB / Component video |
|
Mini D-sub 15pin |
Analog RGB input / Analog RGB output |
|
RCA |
Composite video input |
|
Mini jack |
Stereo audio input |
|
2RCA |
Stereo audio input |
|
Mini jack |
Stereo audio output |
|
Dsub9 |
RS-232C connection |
|
RJ45 |
100BASE-TX / 10BASE-T |
|
Mechanics |
|
|
Adjustable feet |
Front: |
one (Maximum elevation 10°) |
|
Built-in speaker |
10W, monaural |
|
Dimensions (W x D x H) |
333.5 x 247 x 101mm |
|
Weight |
2.98kg |
|
Noise level |
36.4 / 34.4 / 29.0dB |
|
Others |
|
|
Power supply |
AC100 - 240V, 50 / 60Hz |
|
200V Power consumption |
253 / 223 / 186W |
|
200V Standby power consumption |
8.5 / 0.7W |
|
Operation environment |
5 - 35°C, 20 - 80% RH |
|
Storage environment |
-10 ~ 60°C |
