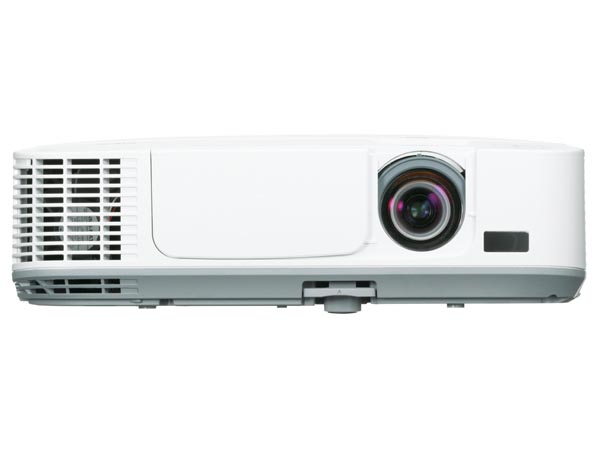

NEC M361X

ความสว่าง 3600 Lumens
ความละเอียด XGA (1024x768)
Contrast Ratio 3,000:1

ราคาพิเศษ Call
ราคาพิเศษ: Call

รายละเอียด
ข้อมูลจำเพาะ
ขอใบเสนอราคา

ความสว่าง	3600 Lumens
ความละเอียด	XGA (1024x768)
Contrast Ratio	3,000:1
สัดส่วนภาพ	4:3
น้ำหนัก	2.99 kg


Display	3 x 1.6 cm (0.63") p-Si LCD Panel with MLA
Native Resolution	1024 x 768 (XGA)
Aspect Ratio	4:3
Contrast Ratio 1	3000:1
Brightness 1	3600 High Bright / 2700 Normal / 2160 Eco ANSI Lumens
Lamp	230 W AC (175 W AC Eco Mode )
Lamp Life [hrs]	8000 Eco / 5000 Normal / 4000 High Bright Mode
Lens	F= 1.7–2.2, f= 17.5–29 mm
Projection Factor	1.3 – 2.2 : 1
Projection Distance [m]	0.6 – 13.8
Screen Size (diagonal) [cm]	Minimum: 63.5 / 25"; Maximum: 762 / 300"
Zoom	Manual
Focus Adjustment	Manual
Supported Resolutions	1920 x 1200 (WUXGA); 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21"); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16"); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (SDTV 576p/576i); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p/480i); 640 x 480 (VGA/MAC 13")
Frequency	Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

CONNECTIVITY

RGB (analog)	Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr) Output: 1 x Mini D-sub 15 pin
HDMI™	Input: 1 x HDMI™ (Deep Color, Lip sync)
Video	Input: 1 x RCA
S-Video	Input: 1 x Mini DIN 4-pin
Audio	Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control	Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN	1 x RJ45
USB	1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals	PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

REMOTE CONTROL

Remote Control

Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode ; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select

ELECTRICAL

Power Supply	100-240 V AC; 50 - 60 Hz
Power Consumption [W]	302 (High Bright ); 236 (Normal) / 211 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)

MECHANICAL

Dimensions (W x H x D) [mm]	339 x 99 x 257 (without lens and feet)
Weight [kg]	2.99
Fan Noise [dB (A)]	28 / 28 / 35 (ECO / Normal / High Bright )

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]	5 to 40
Operating Humidity [%]	20 to 80
Storage Temperature [°C]	-10 to 50
Storage Humidity [%]	20 to 80

OPTIONAL ACCESSORIES

Optional Accessories

DisplayNote; Lamp (NP16LP); Wireless LAN module NP02LM2 (Europe), NP02LM3 (Russia)

ERGONOMICS

Safety and Ergonomics	CE; ErP; TÜV GS; RoHS ; Gost-R
Speakers [W]	1 x 10 (mono)

WARRANTY

Projectors	3 years pan-European service
Lamp	6 months, max. 1000 hrs

SHIPPING CONTENT

Shipping Contents

IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Soft Case; Users Manual on CD-ROM; Quick Setup Guide

1 Compliance with ISO21118-2005
